This project was taken from my Technology 5 course, which required students to document and identify a building under construction. I selected a newly constructed home from a local neighborhood, which was constructed by LTS Homes.

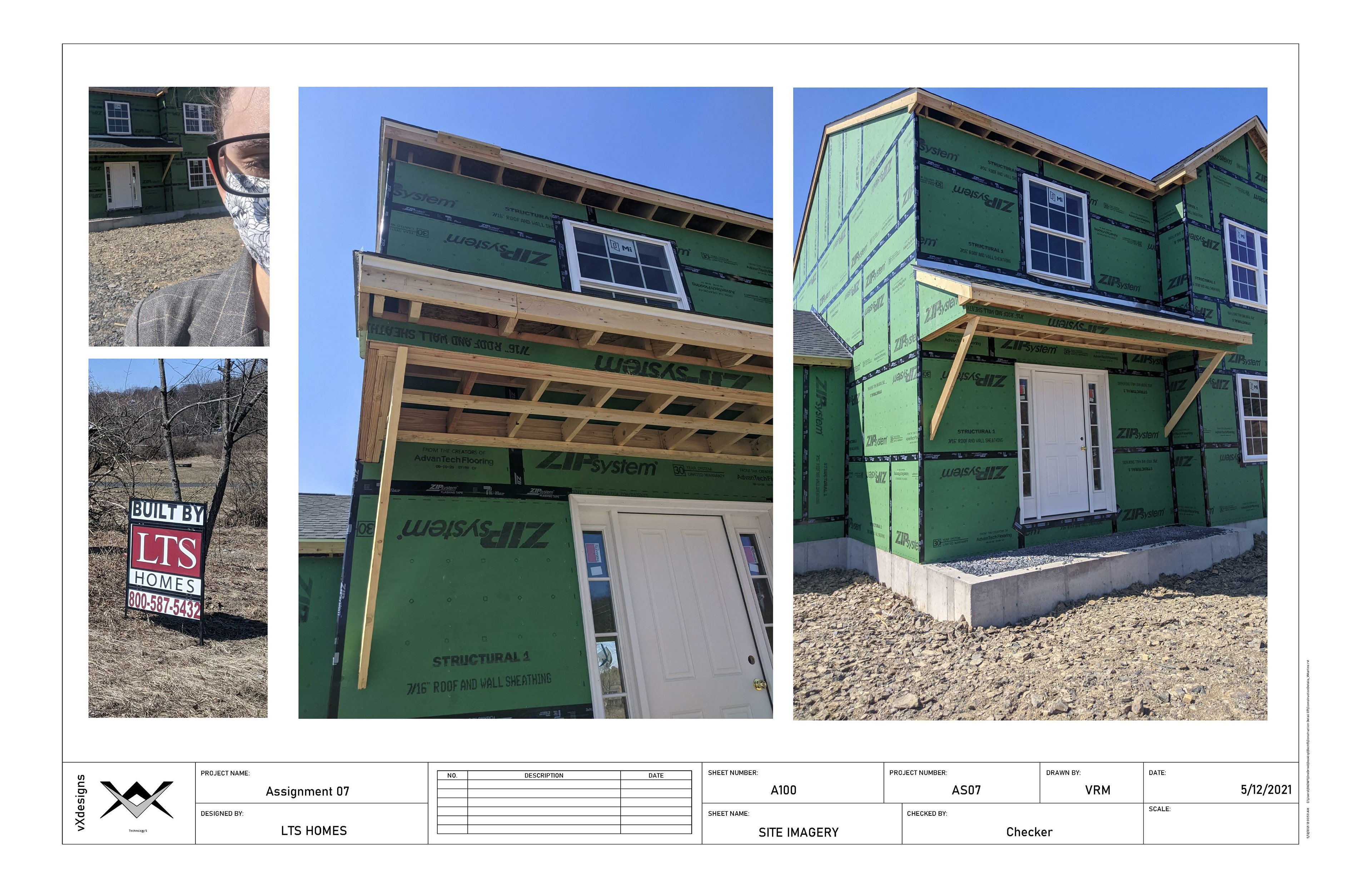

After a brief visit, and several images later, I would select a construction detail that I wanted to create and attempt to identify how the contractors would finish this home.

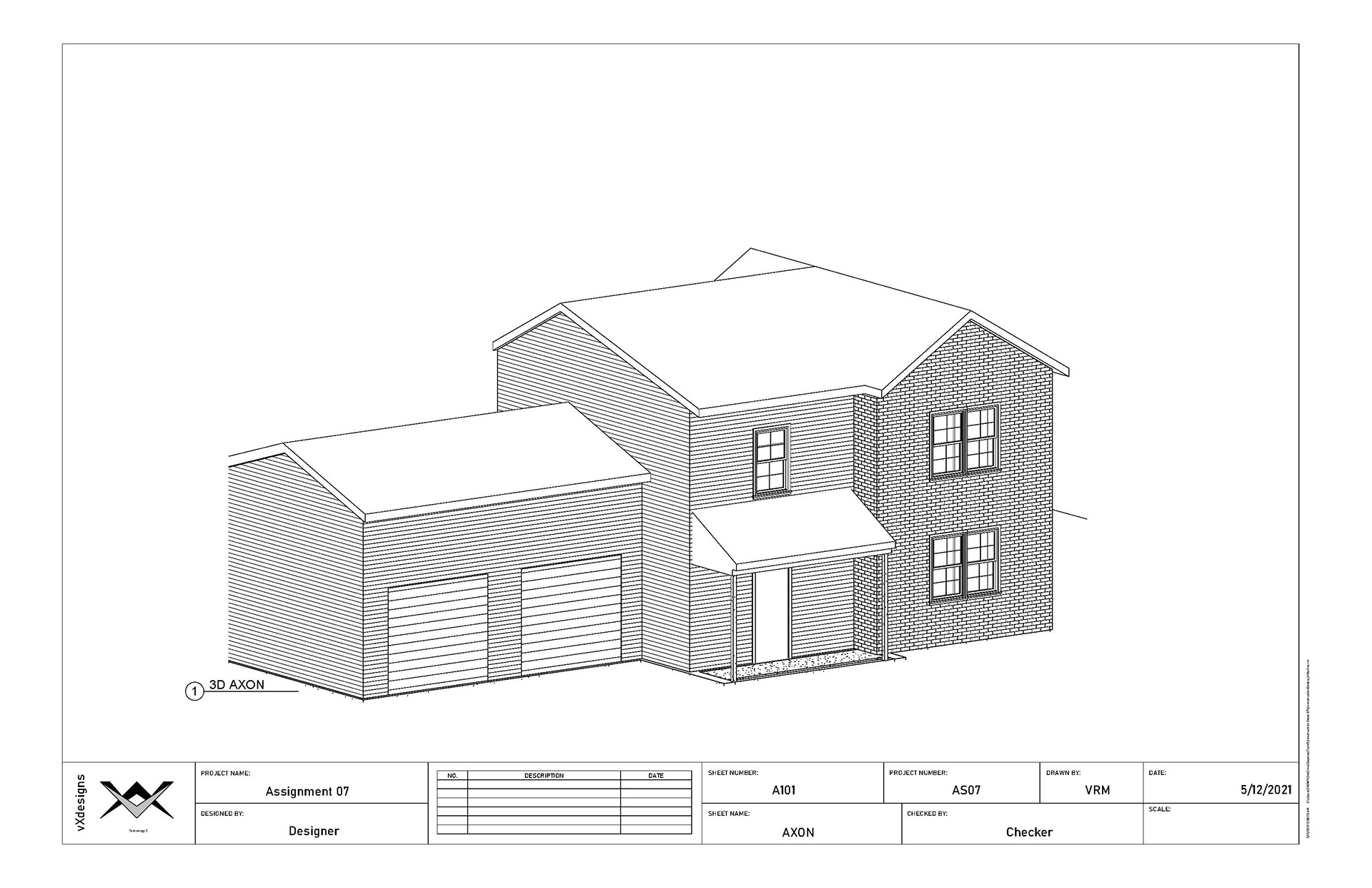

The following images are from a document set, which I created to detail the structural assemblies of this home. The title block was also created by me and was used for the duration of this course.
